Product Description
CSM glass combines the excellent mechanical and electrical properties of traditional E-Glass with the acid corrosion resistance of E-CR-Glass. CSM glass satisfies the requirements and description of both E-Glass and E-CR-Glass according to ISO 2078 and ASTM D 578.

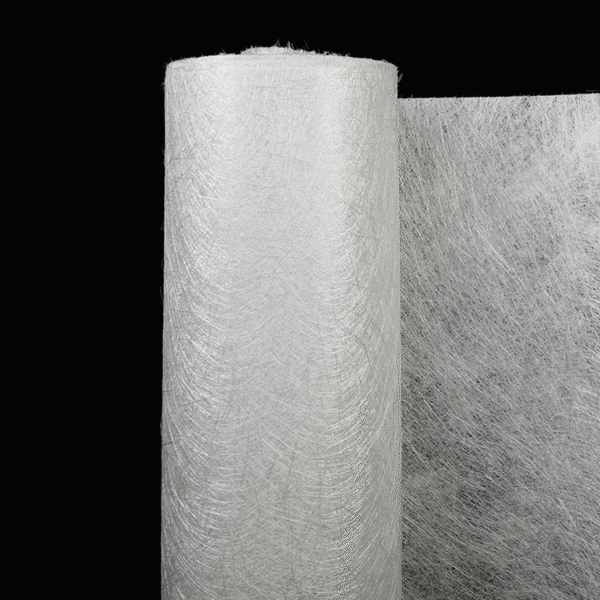

The chopped strand mat is made with medium size strands of glass, held together by a powder binder which is soluble in styrene. The basic strand has a sizing system containing a silane coupling agent. This sizing system combined with the binder properties makes CSM suitable for epoxy, vinyl ester, and anti-corrosion resins.
Product Reference
- 300 : roll weight (g/m²)
- 1040 : roll width (mm)
- 1ST : one trimmed edge
- 2ST : two trimmed edges
- 0ST : no trimmed edges, greatest widths only
Product Application
CSM mat is a reinforcement for use with unsaturated polyester, vinyl ester resins in the hand lay-up process. It is ideal for applications such as roofing sheets, automobile components, boats, chemical tanks, etc.
Recommended Use
Typical applications are those which require high glass content and good mechanical properties. CSM is ideal for applications requiring rapid impregnation and excellent wetting. CSM has excellent handling and tailoring properties as well as the ability to conform rapidly to even the most contoured molds.
Products Available
| STANDARD WEIGHT (G/M²) | STANDARD WIDTH (CM) | DIAMETER(CM) | LENGTH (M) | WEIGHT (KG) |
|---|---|---|---|---|
| 300 | 96 | |||
| 450 | 104 | 27 | 64 | 30 |
| 600 | 48 |
A roll is considered to be complete if it measures more than 70% of the nominal length.
Physical Characteristics
| WEIGHT(G/M²) | LOSS ON IGNITION (%) | MOISTURE (%) | TENSILE STRENGTH (DAN) | SOLUBILITY IN STYRENE (S) |
|---|---|---|---|---|
| ISO 3374 : 1990 | ISO 1887 : 1980 | ISO 3344 : 1977 I | ISO 3342 : 1987 | ISO 2558 : 1974 |
| 300 | 3.5 ± 1.0 | 20 | ||
| 450 | 3.5 ± 1.0 | ≤ 0.20 | 25 | Max. 60 |
| 600 | 3.5 ± 1.0 | 25 |
Individual and Bulk Packaging
Individual Packaging- Each roll is wound on a cardboard tube of internal diameter 76mm.
- Wrapped in a polyethylene film and packed in a cardboard box having a 280x280mm section and a height equal to the mat width (+ around 20mm).
Bulk Packaging
| WEIGHT(MM) | PACKAGING TYPE | NUMBER OF ROLLS | PALLET DIMENSIONS L X W X H (MM) | NET WEIGHT (KG) |
|---|---|---|---|---|
| 1040 | 4 x 4 | 16 | 1140 x 1140 x 1120 | 480.0 |
Storage
Chopped Strand Mat (CSM) should be kept in its original packaging and stored in a sheltered area. The optimal conditions are:
- Temperature between 10 and 45°C inclusive,
- Relative humidity level between 35% and 85% inclusive.
Note: If the storage temperature is less than 15°C, it is advisable to put the pallets in the processing area for 24 hours before use to avoid condensation. It is recommended that products be consumed using a first-in, first-out method within 12 months of delivery.
